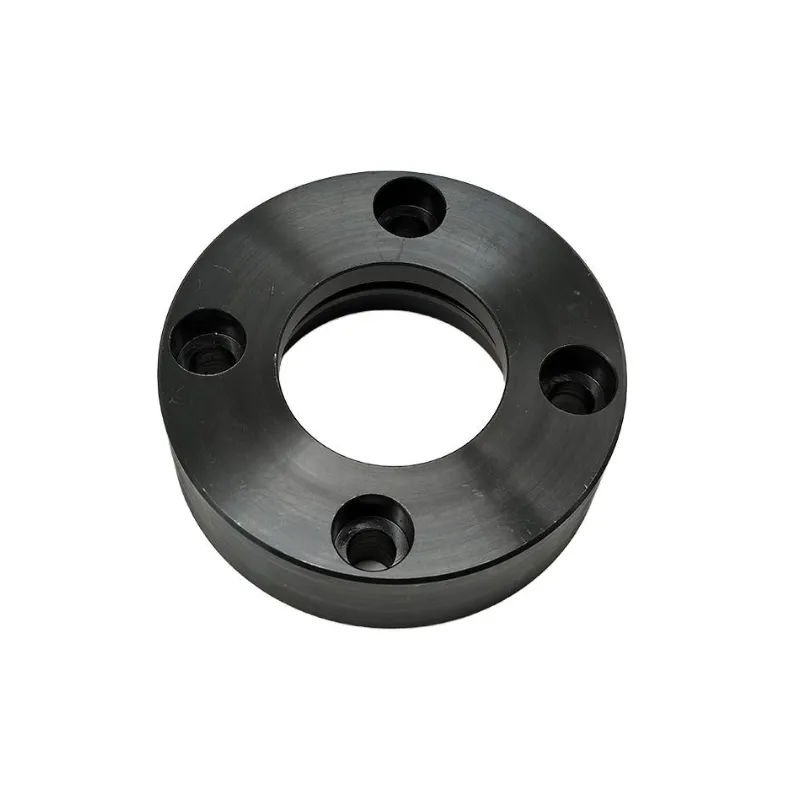

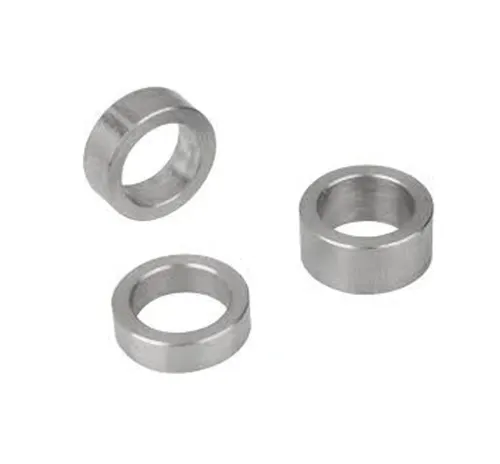

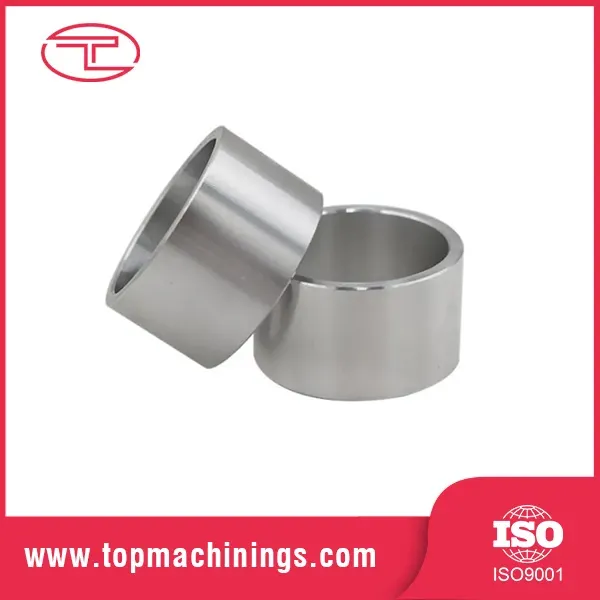

CNC Machined Spacer Rings

Tuoyuan Metal is a professional manufacturer of CNC Machined Spacer Rings. We operate our own factory equipped with comprehensive production lines and accept custom orders based on provided drawings. We are capable of meeting the specific requirements of various industries, delivering products characterized by high precision and exceptional consistency.

Product Advantages

High Precision Control: Adopting imported 5-axis CNC machining centers and coordinate measuring machines (CMM), the machining precision can reach ±0.005mm, the surface roughness is as low as Ra 0.1μm, and the geometric tolerances such as concentricity and parallelism are strictly controlled at the micron level, ensuring consistent size of each product, perfect adaptation to assembly needs, and effectively avoiding equipment operation failures caused by precision deviations.

Diverse Material Adaptation: Supporting the processing of various materials such as stainless steel (SUS304/316), aluminum alloy (6061/7075), copper, titanium alloy, engineering plastics (PEEK) and 42CrMo, we can recommend the optimal material solution according to the customer's application scenarios (such as high temperature, corrosion, high pressure environment), balancing durability and economy, and adapting to the special needs of different industries.

Flexible and Efficient Customization: We can fully customize CNC Machined Spacer Rings of different inner diameters, outer diameters, thicknesses and structures (cylindrical, flanged, hexagonal, etc.) according to customer drawings, samples and technical requirements, supporting small-batch prototyping (72-hour quick response) and mass production with short delivery cycles and a prototyping qualification rate of over 99.5%, meeting customers' diverse and personalized needs.

Stable Mass Production: We have built a standardized production line and a full-process closed-loop process control system. From incoming inspection of raw materials to outgoing inspection of finished products, each link is equipped with an exclusive inspection process, and detailed inspection reports can be provided to ensure the consistency and stability of mass production, with the defect rate controlled within 0.5%, effectively reducing customers' procurement costs and losses.

High Cost-Effective Advantage: By optimizing the processing technology and raw material procurement channels, we effectively control the production cost on the premise of ensuring high precision and high quality, with transparent quotes and no hidden fees. At the same time, we provide perfect after-sales service, handle quality problems on site within 48 hours, and offer free repair or replacement, providing customers with a cost-effective overall solution.

Product Features

Precision Machining Process: Adopting integrated machining processes such as CNC turning, CNC milling and laser marking, multiple processes are completed in one clamping, reducing repeated positioning errors, improving product machining precision and surface finish, without burrs or scratches, and with a flat and smooth appearance.

Strict Precision Standards: Complying with ISO 9001 and IATF16949 quality system standards, the dimensional tolerance can be customized in the range of ±0.005mm~±0.1mm, and the surface roughness can reach Ra 0.1μm~Ra 1.6μm, fully meeting the usage standards of industrial-grade high-end precision components.

High-Quality Material Characteristics: High-purity raw materials are selected and subjected to pre-treatment processes such as aging treatment to pre-release internal stress of the material, avoid deformation after processing, and have good wear resistance, corrosion resistance, high temperature resistance and impact resistance, extending the service life of the product.

Diverse Surface Treatments: Supporting various surface treatment methods such as anodizing (black, red, blue, etc.), galvanizing, chrome plating, polishing, sandblasting and PVD, the surface color and texture can be customized according to customer needs, which not only improves the product appearance, but also enhances the anti-corrosion and anti-rust performance, adapting to different use environments.

Reasonable Structural Design: Various structures such as cylindrical, flanged, hexagonal and tapered can be designed to adapt to different assembly scenarios; the structure is compact and light in weight, easy to install and disassemble, which can effectively save assembly space and improve the overall operation efficiency of the equipment.

Product Specifications

Product Application

Aerospace Field: Used in aircraft engines, landing gear, navigation equipment, satellite components, etc. With high precision, high strength and high temperature resistance, it ensures the stable and safe operation of aerospace equipment, meeting the strict requirements of space environment use.

Automotive Manufacturing Field: Adapted to automotive engine, gearbox, braking system, suspension system, drive shaft and other components, playing the role of positioning, spacing and buffering, improving the assembly precision and service life of automotive components, and adapting to the mass production needs of the automotive industry.

Electronic and Electrical Field: Applied in sensors, instruments, circuit boards, power supply equipment, communication equipment, etc., for spacing, insulation and positioning of components, preventing component contact short circuit, improving the stability and reliability of electronic equipment, and adapting to the miniaturization needs of precision electronic equipment.

Mechanical Equipment Field: Widely used in machine tools, automation equipment, robots, bearings, gearboxes, etc., playing the role of fixing spacing, reducing wear, buffering and shock absorption, improving the operation precision and efficiency of mechanical equipment, extending the service life of equipment, and adapting to the assembly needs of various industrial mechanical equipment.

Medical Equipment Field: Used in medical devices, surgical instruments, diagnostic equipment, etc., processed with medical-grade materials, with burr-free, high precision and corrosion resistance, ensuring the safety and accuracy of medical equipment, meeting the strict quality standards of the medical industry.

Semiconductor Field: Applied to core components such as semiconductor etching equipment and memory chip production equipment, processed in a class 1000 clean room with surface residual particle diameter ≤0.5μm, adapting to semiconductor vacuum processes and helping with the localization replacement of semiconductors.

Other Fields: It can also be applied in marine manufacturing, new energy equipment (wind power, photovoltaic), hardware tools, furniture manufacturing and other fields, providing customized spacer ring solutions according to the use needs of different industries, adapting to various complex application scenarios.
