CNC Machining Industrial Dowel Pins

A dowel pin is a short, cylindrical pin used to maintain precise alignment between two or more parts of an assembly. Unlike a bolt, which clamps parts together, CNC machining industrial dowel pins establish position. It  is the reference point the whole assembly is built around. When you bolt a gearbox housing to a motor flange, the dowel pins — not the bolts — guarantee the shafts stay aligned.

Dowel pins come in two main forms: press-fit and slip-fit. The performance difference between a good dowel and a bad one is measured in microns: too tight and it galling-seizes; too loose and the assembly drifts.

Materials and Hardness of Industrial Dowel Pins

Carbon steel (1045/1060): hardened and tempered, cost-effective general use

Bearing steel (GCr15/52100): through-hardened to HRC 60–64 for maximum wear life

Stainless (SUS303/304/316): corrosion-resistant for food, marine, and medical use

Hardened tool steel (for special wear applications)

Diameter range: 1mm – 30mm, lengths from 3mm to 200mm

Tolerance classes: m6 press-fit, h6/h7 slip-fit per ISO 8734/8735, USAS B18.8.2

The classic manufacturing route is centerless grinding: bars are ground to final diameter on a centerless grinder, cut to length, chamfered, and hardened. What most buyers do not realize is that the grind-before-harden order matters — hardening after grinding causes distortion, which is why we grind, harden, then finish-grind the critical pins.

Tuoyuan Real Case Sharing

Industry: Industrial Automation & Machinery

Material: Aluminum / Stainless Steel

Process: Precision CNC Turning & Grooving

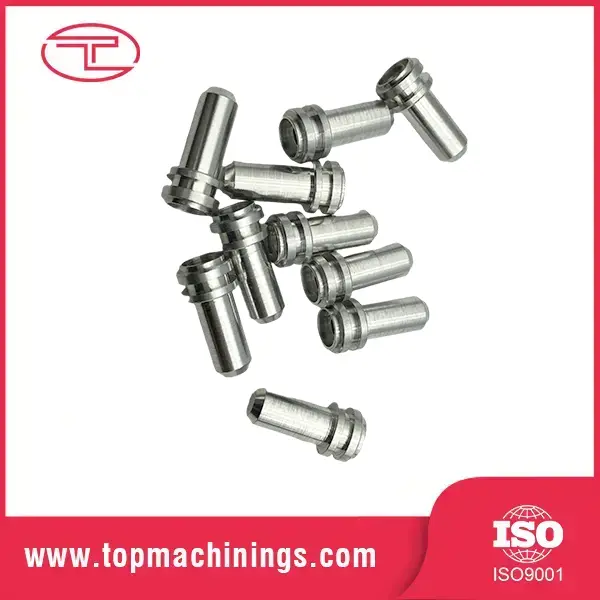

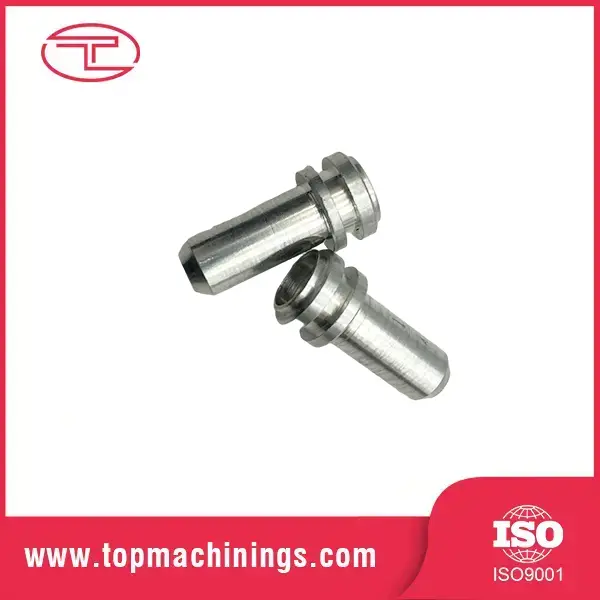

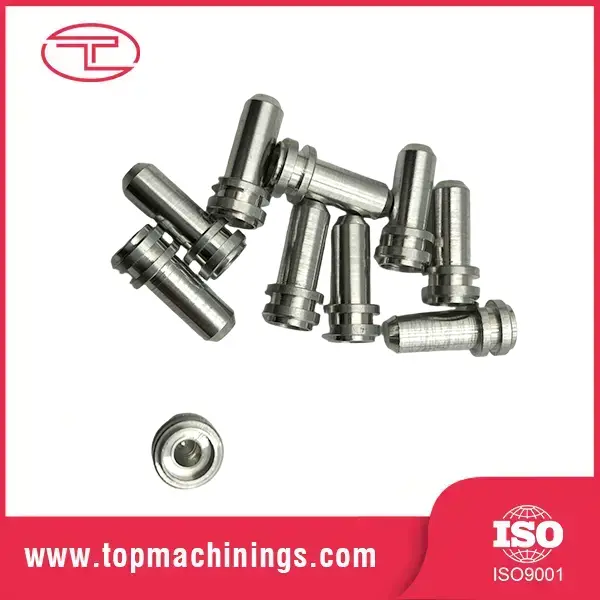

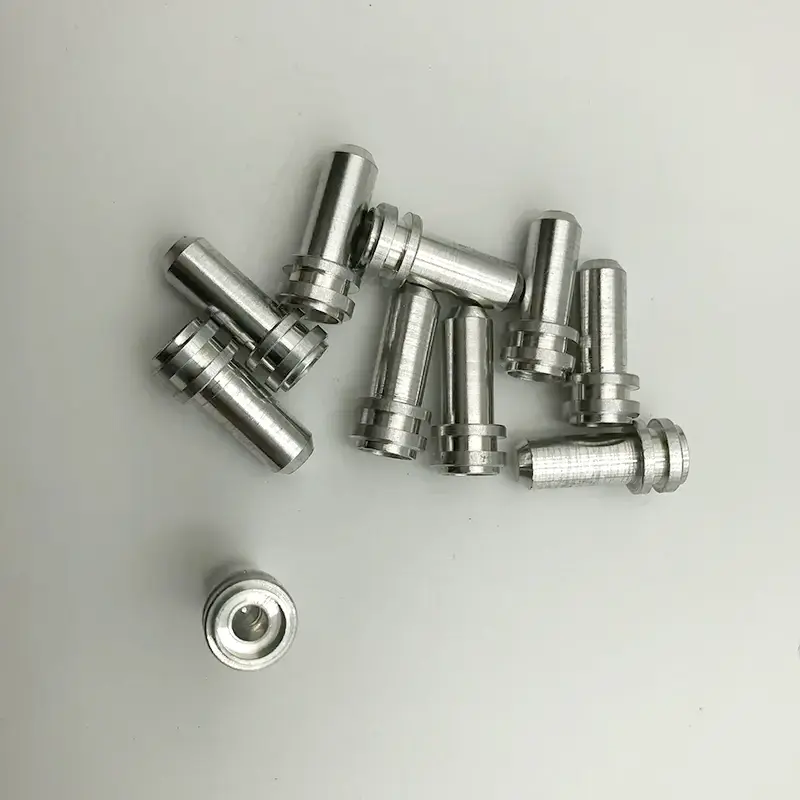

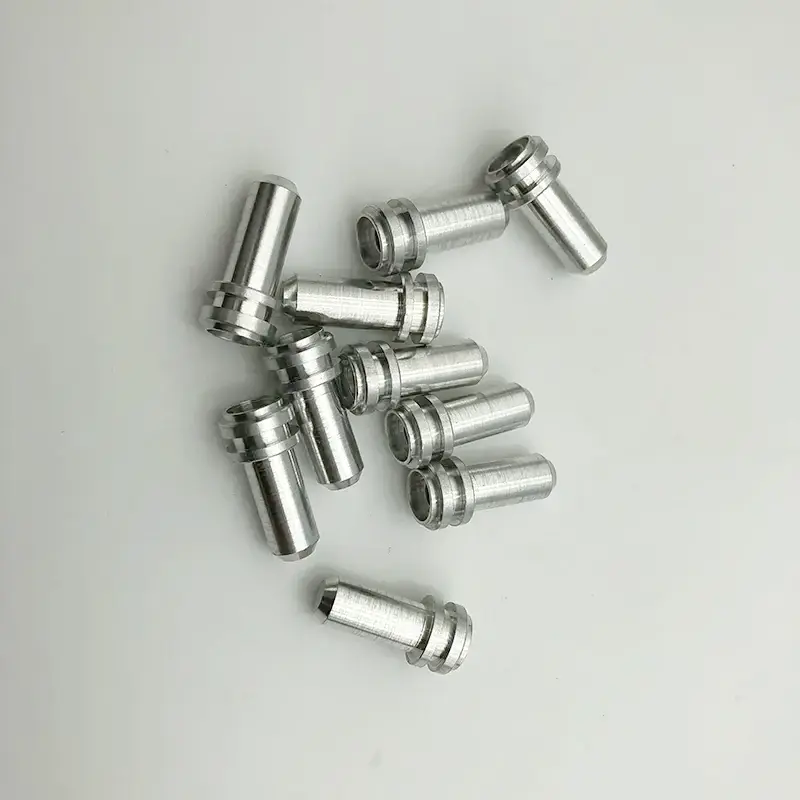

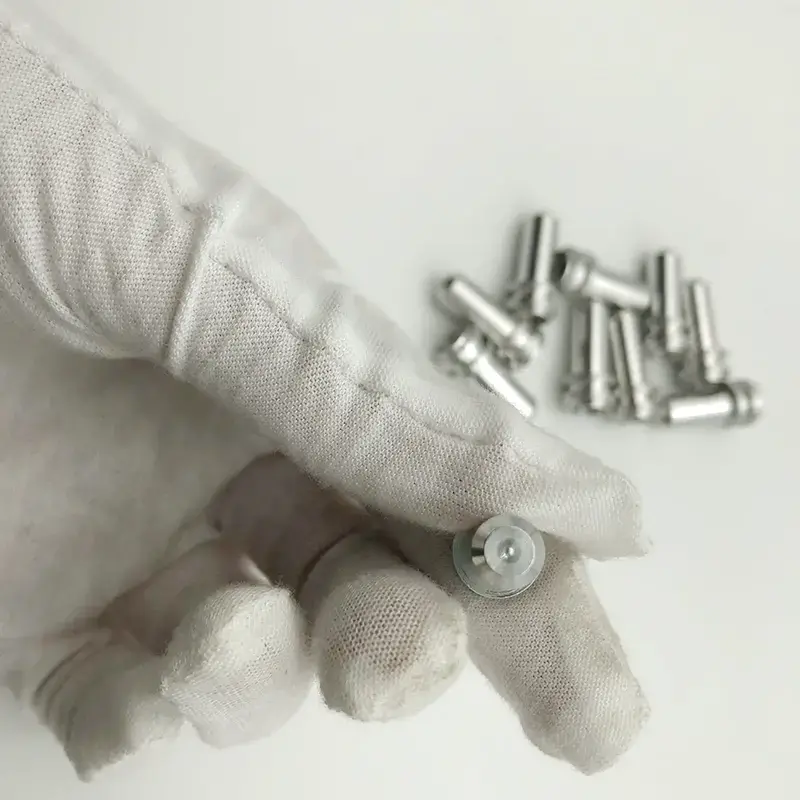

A US automation manufacturer required custom CNC machining industrial dowel pins with precise O-ring retaining grooves and strict dimensional tolerances to ensure accurate alignment and secure sealing in high-speed assembly lines.

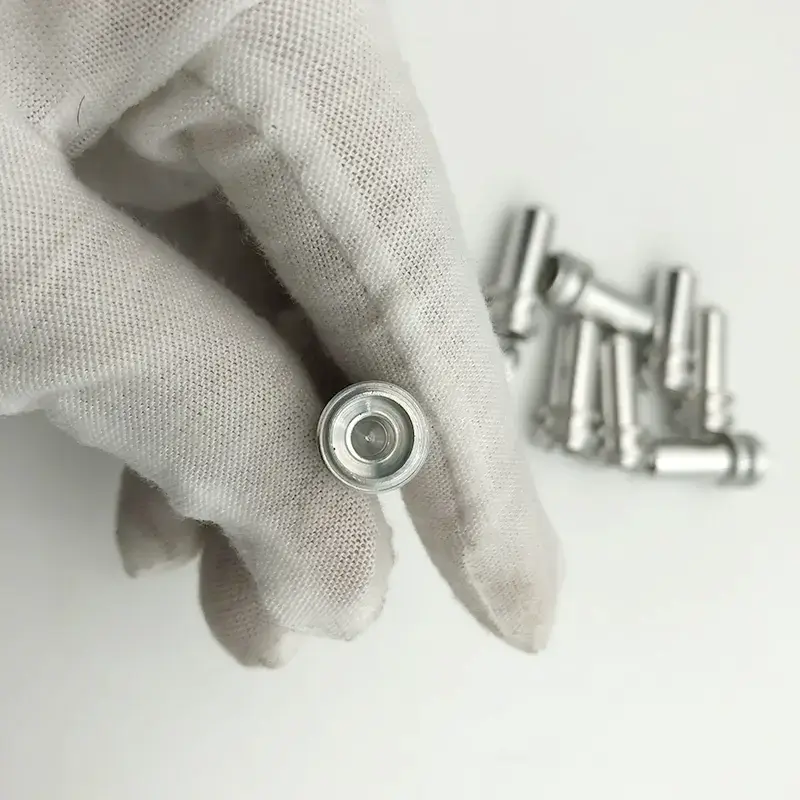

We produced these multi-stepped pins using high-precision Swiss CNC turning machines, maintaining exact groove depth and surface finish for optimal sealing. 100% optical inspection was conducted prior to packaging.

Key Features and Benefits

Ground to ±0.002mm for True Positioning

Final diameters are centerless ground to ±0.002mm with a surface finish of Ra 0.2–0.4μm. This is not a "close enough" tolerance — CNC machining industrial dowel pins are the tolerance that makes assemblies repeatable, fixtures accurate, and products consistent.

Hardened to HRC 60+ for Long Service

Bearing-steel pins are through-hardened to HRC 60–64, giving them the hardness to survive repeated insertion and removal without scoring. A hardened dowel outlasts a soft one by an order of magnitude.

Chamfered Ends, Clean Edges

Both ends are chamfered (typically 1.5×45°) and deburred, so pins start into holes cleanly without shaving material or damaging the hole mouth. No burrs, no scratched bores, no rejected assemblies.

Straightness You Can Trust

Length-to-diameter ratios are held straight within 0.01mm per 50mm. A bent dowel pin not only fails to locate — it damages the reamed hole on insertion. We measure straightness on every production batch.

Tight Diameter Grouping for Mixed Fits

Pins are sorted into tight diameter groups so that a box of pins gives consistent fit pressure. No more "this one slides, that one needs a hammer" on your assembly line.

Product Specifications

Production Process

CNC machining industrial dowel pin production starts with cold-drawn or ground bar stock. Bars are centerless ground to near-final diameter, cut to length, chamfered, and deburred. For hardened pins, they are then heat treated and finish-ground to the final tolerance — the two-stage grind is what keeps the finished pin perfectly round and straight.

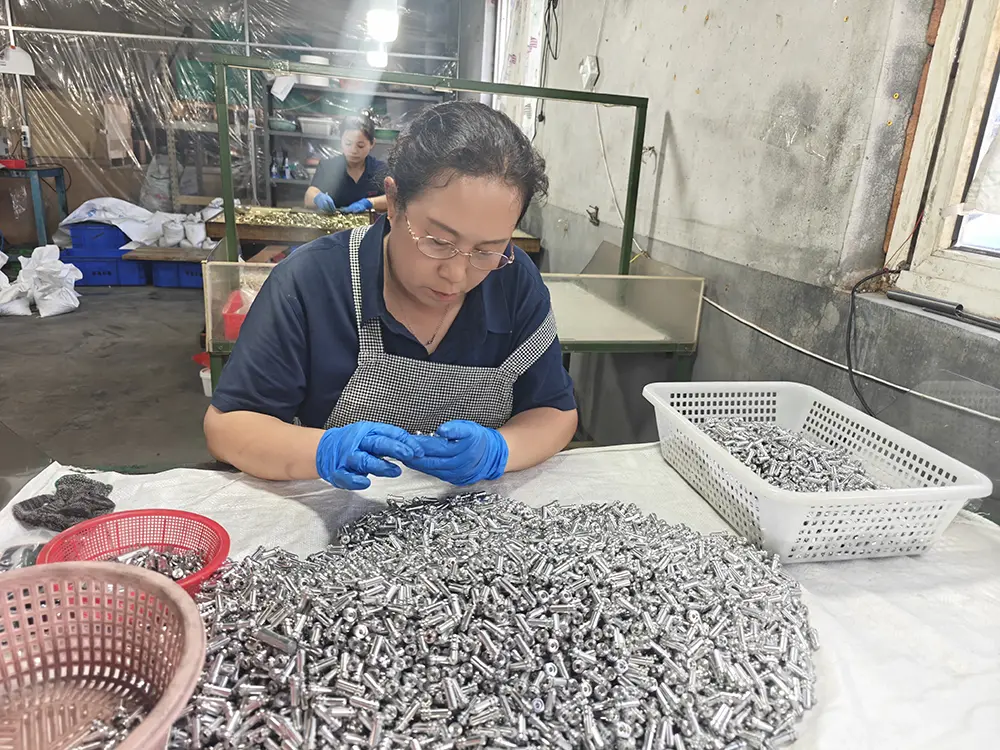

Final inspection covers diameter (with micrometer and air gauge), hardness (Rockwell testing), straightness, and surface finish. Pins are grouped by diameter and packed in oiled, rust-protected packaging. Batch certificates accompany every order.

Production Timeline

Standard lead time: 10–15 days for standard sizes; 15–18 days with hardening and grinding.

Day 1–3: Order confirmation and material selection

Day 4–8: Bar grinding, cutting, chamfering

Day 9–12: Heat treatment and finish grinding (if specified)

Day 13–14: Inspection, grouping, packing

Day 15: Dispatch from Qingdao

Why Choose Tuoyuan Metal

Micron-Level Capability, Industrial Volumes

With 10+ years in precision machining, 20 CNC lathes, and 100-million-piece annual capacity, Tuoyuan Metal can deliver CNC machining industrial dowel pins in automotive-grade volumes with lab-grade tolerances. We have shipped 2.5-million-piece batches at under 15 PPM defect rates.

North America's Trusted Supplier

60% of our output goes to North American customers, with a 95% repeat purchase rate. If our dowel pins did not locate parts correctly, those customers would not be reordering — every quarter, for years.

Full Traceability

Material mill certificates, heat treatment records, and inspection reports are archived per batch. Full traceability from bar stock lot to finished pin.

Fast Samples and Quotes

Sample orders ship in 3–5 days. Quotes within 24 hours. Quality issues responded within 48 hours. This is our standard, not our promise.

Packaging & Shipping

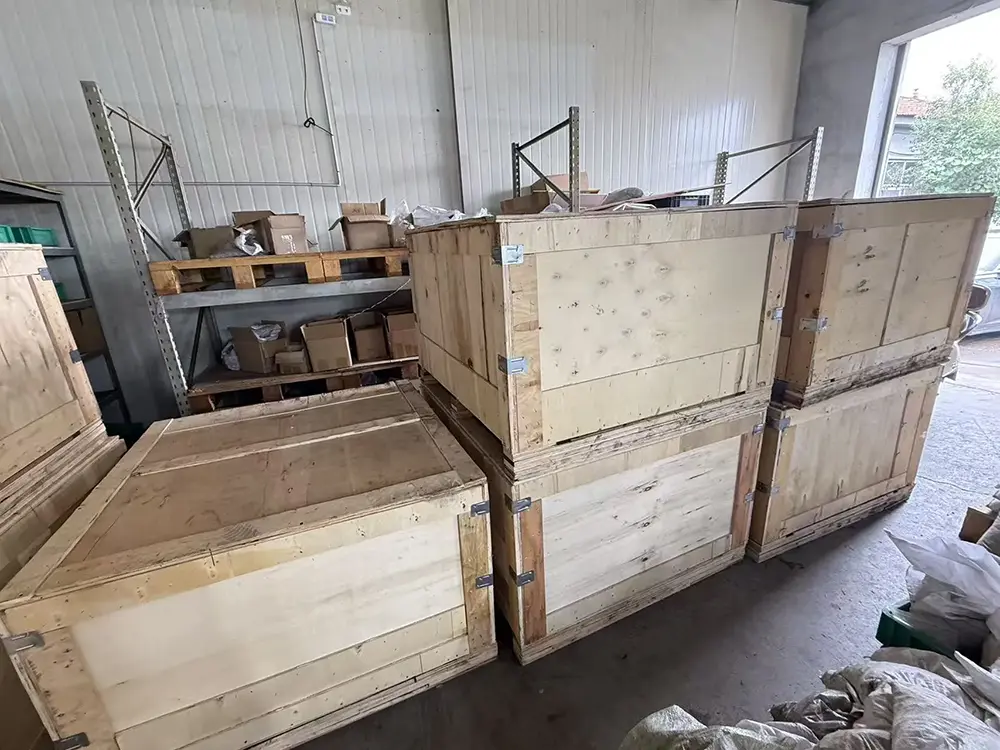

Pins are oiled or coated, packed in poly bags with rust inhibitor, and shipped in cartons or wooden cases. Express (DHL/FedEx/UPS) for small orders, sea freight from Qingdao Port for bulk. Documentation: Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, Material Test Certificate. For CNC machining industrial dowel pins prices, bulk orders, or a quotation, contact our export team.

FAQ

Q1: What tolerance do your dowel pins hold?

A1: Standard ground tolerance is ±0.002mm on diameter, with surface finish Ra 0.2–0.4μm. Fit classes available: m6 press-fit, h6/h7 slip-fit.

Q2: What is the difference between m6 and h6 fit pins?

A2: m6 pins are slightly oversized for press-fit installation, they lock into reamed holes and require a puller to remove. h6/h7 pins are slip-fit for assemblies that must be disassembled regularly. Tell us your application and we will recommend the right class.

Q3: Do you provide hardened stainless pins?

A3: Yes — precipitation-hardening stainless can be hardened to HRC 38–44 with excellent corrosion resistance. For food or marine duty, this is the right choice.

Q4: Can you make custom-length or custom-chamfer pins?

A4: Yes. We cut custom lengths, custom chamfers, tapered pilots, and grooves per drawing. MOQ for custom pins is low — samples are welcome.

Q5: How do you prevent rust on pins in storage?

A5: Pins are oiled and packed with vapor-phase corrosion inhibitor paper. For overseas sea freight, we use VCI packaging to guarantee rust-free arrival.
